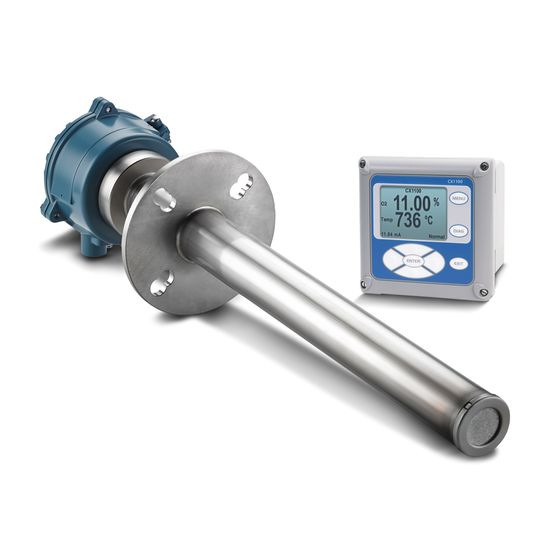

The Rosemount CX1100 In-Situ Oxygen Analyzer provides measurement of oxygen in clean-burning applications. Get accurate oxygen measurements to optimize combustion reactions, reduce energy costs and meet environmental regulations. All welded construction and no reference gas requirement reduces installation and maintenance costs.
Specifications
- Measurement Type
- Oxygen, Zirconia – Brazed Disk
- Repeatability
- ±1% of reading or 0.1% of O2 whichever is lower
- Measurement Range
- 0 to 23%
- Time Constant / Response
- Up to 10 sec T90
- Process Temperature Range
- Up to 752 °F (400 °C)
- Ambient Temperature
- -4 to 158 °F (-20 to 70 °C)
- Dimensions
- Probe Length Options from 19.7 in (0.5 m) to 6.6 ft (2 m)
- Output Signal
- 4-20 mA
- Certifications/Approvals
- Ordinary location, see full specs for complete list of certifications
Features
- Optional remote mounted LCD Display and interface for easy access to process information and simplified maintenance
- Good measurement repeatability of ±1% of reading and multiple probe length options to suit your application needs
- Robust zirconia oxygen sensor provides measurement of furnace exhaust gas critical for boiler trim applications
